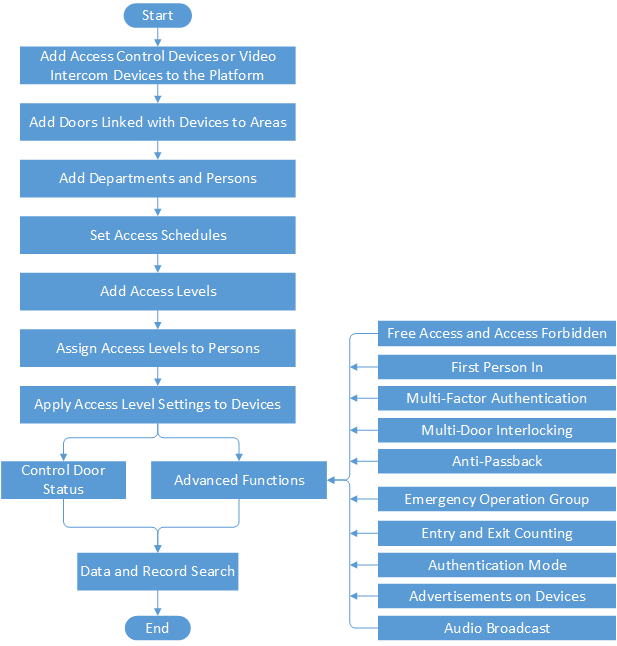

Flow Chart of Door Access Control

Add Access Control Devices or Video Intercom Devices to the Platform

You need to add access control devices and video intercom devices to the system. For details, refer to Manage Access Control Device and Manage Video Intercom Device.

Add Doors Linked with Devices to Areas

Group doors linked with added devices for management. Refer to Add Door to Area for Current Site for details.

Add Departments and Persons

Add person information and set person's credentials (such as PIN, card, and fingerprint). For details, refer to Person Management.

Set Access Schedules

The access schedule defines when the person can access the access point with credentials. For details, refer to Set Access Schedule Template.

Add Access Levels

An access level is a group of doors. After assigning access level, the assigned objects can get access to these doors during the authorized time period. For details, refer to Manage Access Level.

Assign Access Levels to Persons

You need to assign access levels to persons, so that the assignees can access the access points in the access levels. You can assign an access level to multiple persons or assign multiple access levels to a person or a department. For details, refer to Assign Access Level.

Apply Access Level Settings to Devices

After setting the linkage between the persons and the access level, you need to apply the person's access level settings to the access control device of the doors linked to the access level to take effect. After that, the persons can access these doors during the authorized time period defined by the related access level. For details, refer to Apply Persons' Access Levels to Device.

Control Door Status

You can manually change the door status to locked, unlocked, remaining locked, or remaining unlocked. Refer to Door Control for details.

Advanced Functions

Refer to Configure Free Access and Access Forbidden Rules, Configure First Person In Rule, Configure Multi-Factor Authentication Rule, Configure Multi-Door Interlocking, Configure Area Anti-Passback Rules, Add Emergency Operation Group, Add Entry and Exit Counting Group, Configure Authentication Mode, Apply Advertisement to Access Control Devices, and Add Audio Broadcast for details.

Data and Record Search

Refer to Search Access Records and Search Data Recorded on Access Control Devices and Elevator Control Devices for details.
