Two-Module Surface Mounting

Figure 1 Mounting Frame
Note:

  • The suggested depth of the installation hole is 33 mm.

  • The dimensions above are for reference only. The actual size can be slightly different from the theoretical dimension.

  1. Stick the mounting sticker to the wall. The suggested length of cables left outside is 270 mm.
    Figure 2 Stick the Sticker

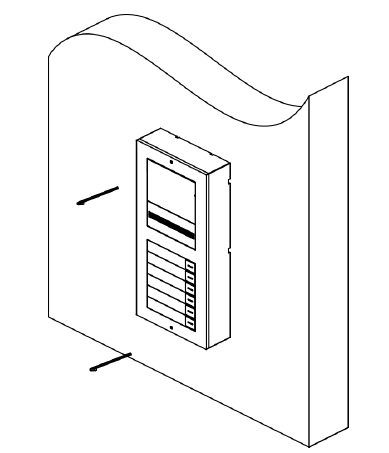

  2. Drill 4 holes of 25 mm deep according to the marks on the sticker and insert the expansion sleeves into the screw holes. Remove the mounting sticker and fix the mounting frame to the wall with 4 expansion bolts.
    Figure 3 Fix the Mounting Frame

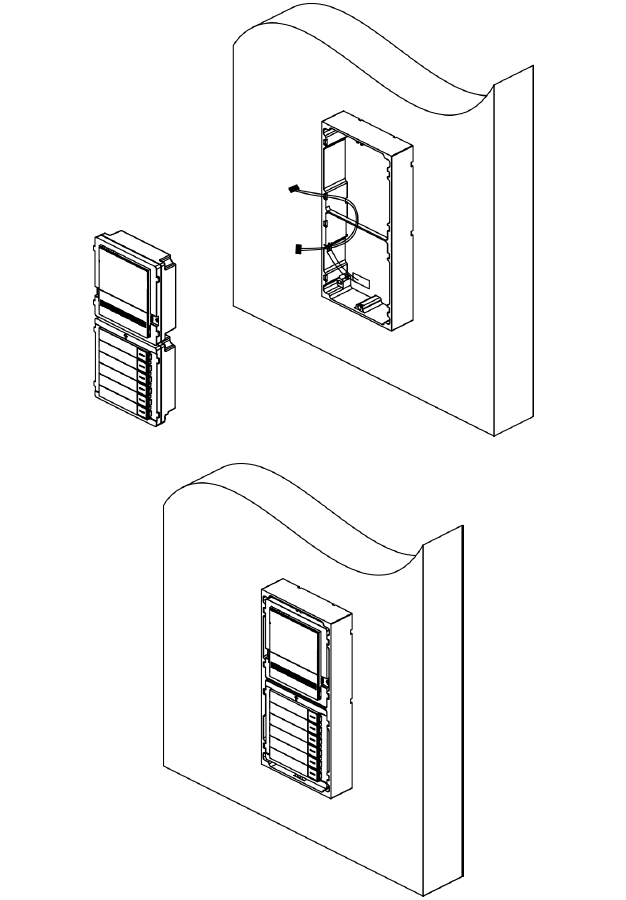

  3. Thread the module-connecting line across the thread holes of the frame. Pass the main unit connecting line across the thread hole to the top grid and connect the cables. Insert the modules into the frame after wiring. The main unit must be placed in the top grid.
    Figure 4 Fix Modules to the Frame
  4. Apply silicone sealant among the cable wiring area to keep the raindrop from entering.
    Figure 5 Apply Silicone Sealant
  5. Use the hexagon wrench in the package to fix the cover onto the frame.
    Figure 6 Fix the Cover
