Relay Module Wiring

1. Wiring
Note:
  • The cable between two devices should be undivided. Using discontinuous cables for connecting will cause impact on the power supply and communication function.
  • Avoid using the same cable to power both the door station and the indoor station.
  • CH3 to CH6 interfaces are 110 W in total. The distributor can connect to the indoor station via CH3 to CH6. CH1/CH2 interface is 15 W each. The distributor can connect to the door station via interface CH1 and CH2.
  • The relay module can connect the floor shunt via any of the 4 interfaces (CH1~CH4).
  • The lockinterface of the relay can connect to lock, light and mechanical doorbell.

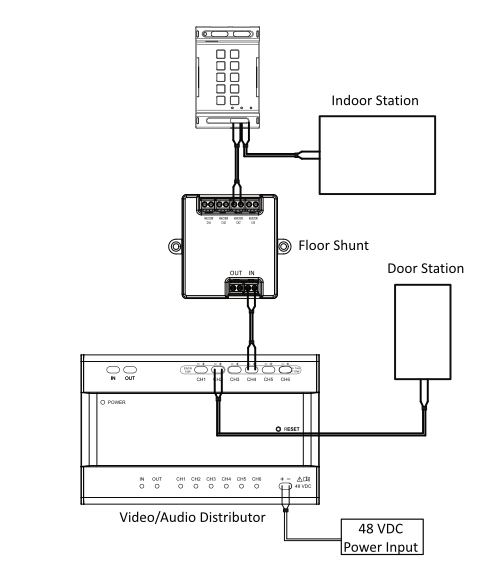

Figure 1 Relay Wiring

2. Relay system wiring

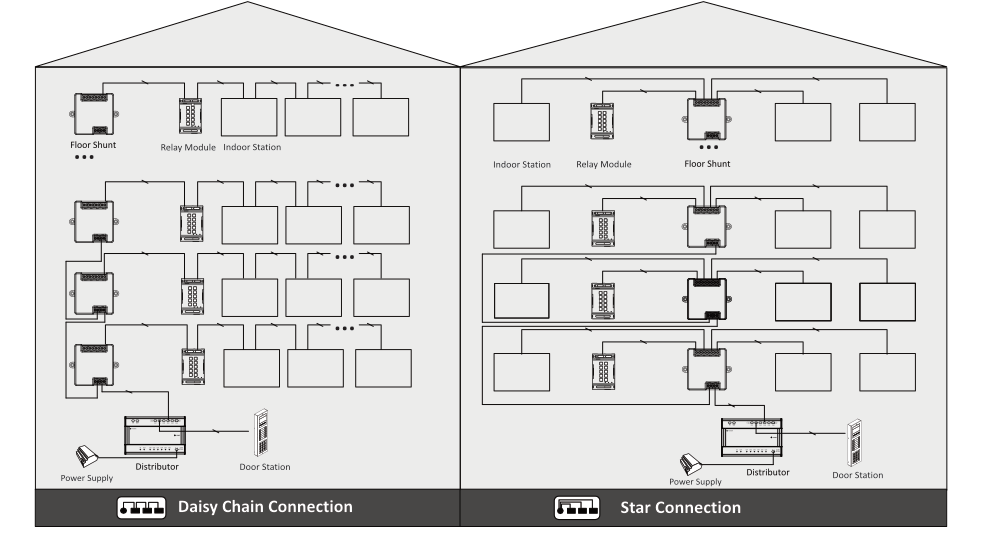

Figure 2 Relay System Wiring
