Three-Module Flush Mounting

Figure 1 Mounting Box
Note:

The dimensions above are for reference only. The actual size can be slightly different from the theoretical dimension.

  1. Stick the mounting sticker to the wall and cave the installation hole according to the sticker. Pull the cable out. Stick the mounting sticker to the installation hole and drill 4 holes of 25 mm deep according to the marks on the sticker and insert the expansion sleeves into the screw holes.
    Note:

    • The suggested depth of the hole is 44.5 mm.

    • The suggested length of cables left outside is 270 mm.

    Figure 2 Drill the Installation Hole
  2. Fix the mounting box to the installation with 4 expansion bolts. Remove the positioning piece of the mounting box.
    Figure 3 Fix the Mounting Box
  3. Connect cables of the main unit and other modules and insert the modules to the mounting box.
    Note:

    Apply silicone sealant on the top and sides of the mounting box. Do not apply silicone sealant on the bottom of the box.

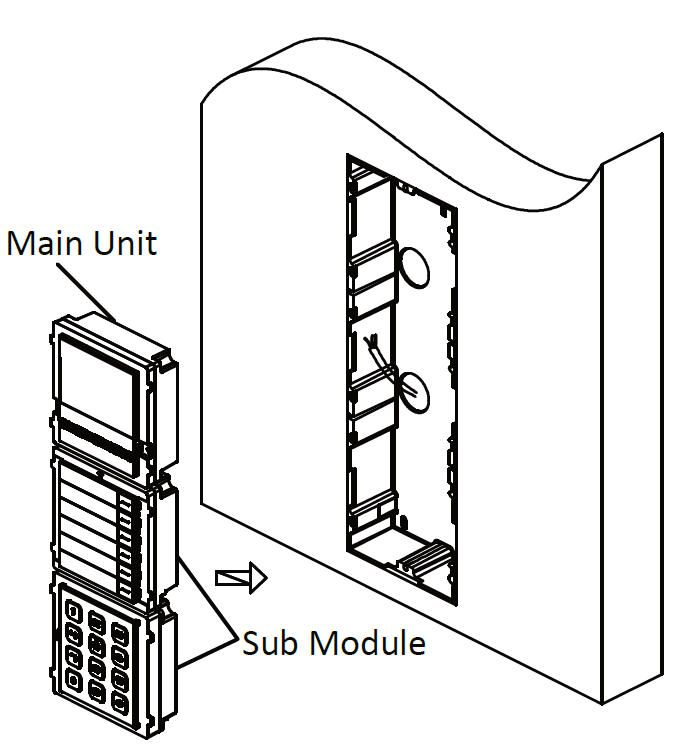

    Figure 4 Fix Modules to the Mounting Box
  4. Fix the cover with 2 socket head cap screws by using a hexagon wrench.

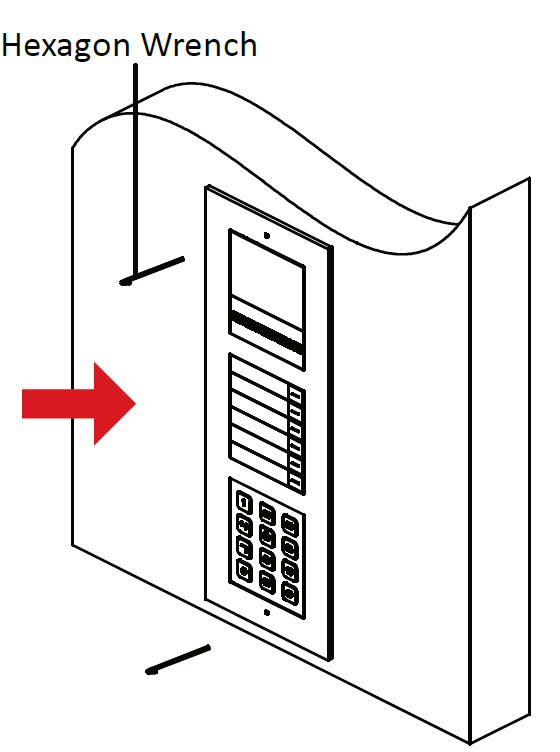

    Figure 5 Fix the Cover
