Relay Module Installation

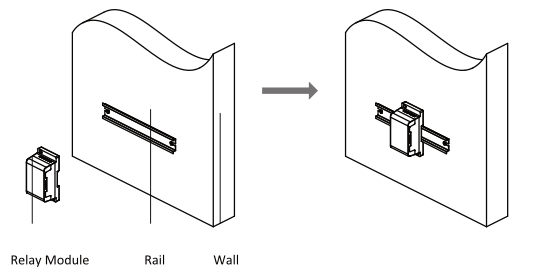

Wall Mounting with Rail

  1. Fix the rail onto the wall.
  2. Press the red clip upward, and lock it to the DIN rail.
Note:

You are required to utilize a matched rail.

Make sure the device in the package is in good condion and all the assembly parts are included.

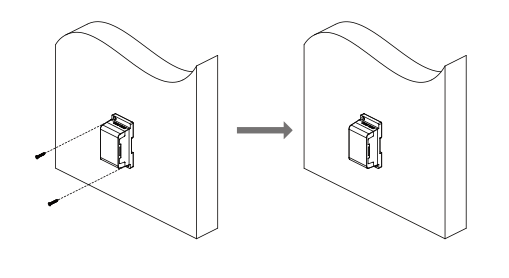

Wall Mounting with Screws

  1. Fix the relay module to the wall with 2 screws.
Note:

Make sure all related equipments are power-off during the installaon. Check the product specificaon for the installation environment.
