Topology

The 2-Wire HD devices can be used in different situations.

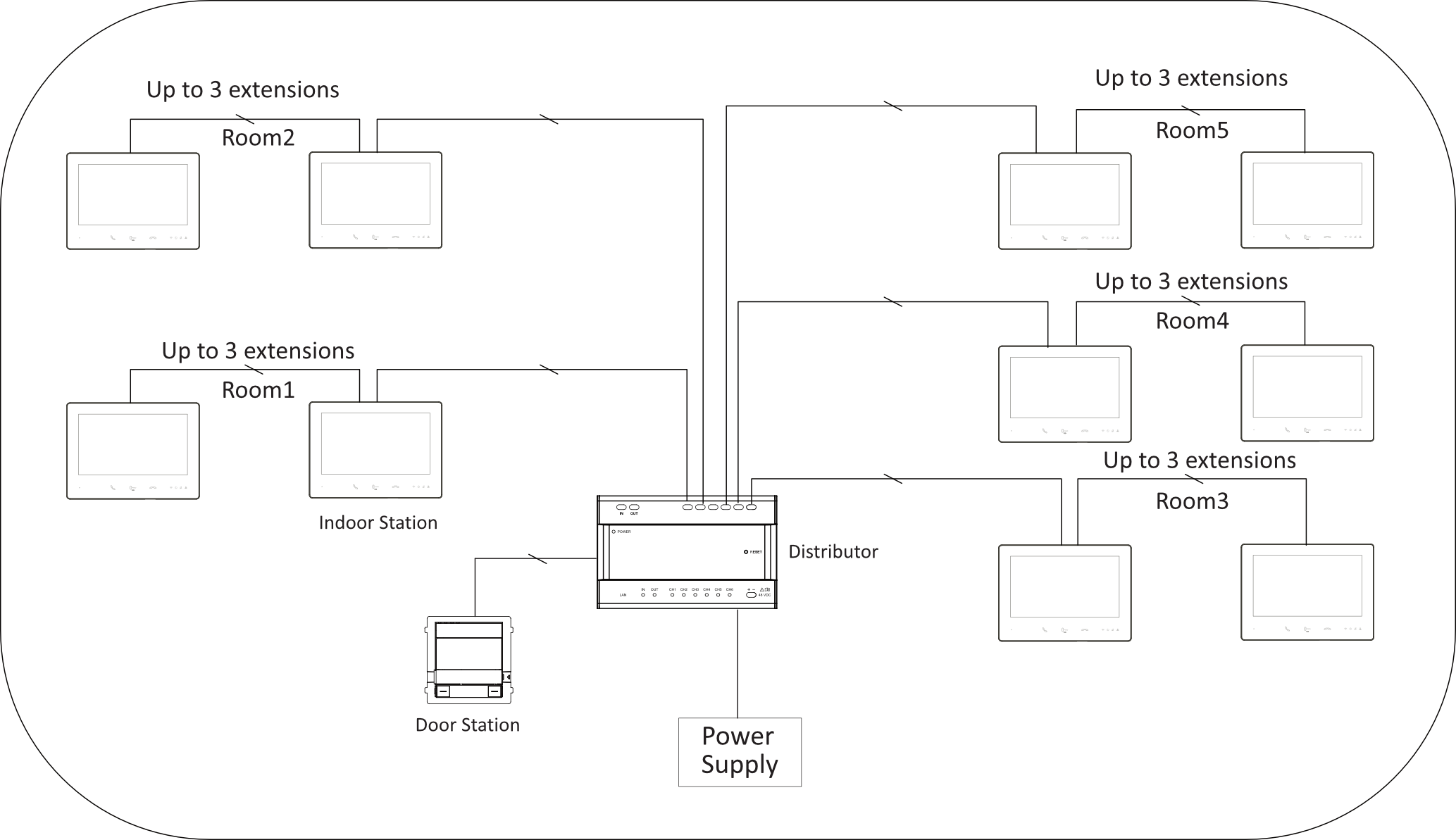

Multi-Family Topology

Figure 1 Multi-Family Topology

Note:
Each channel of the distributor can be connected to 1 door station / 1 main and 3 sub indoor stations / 8 main indoor stations.

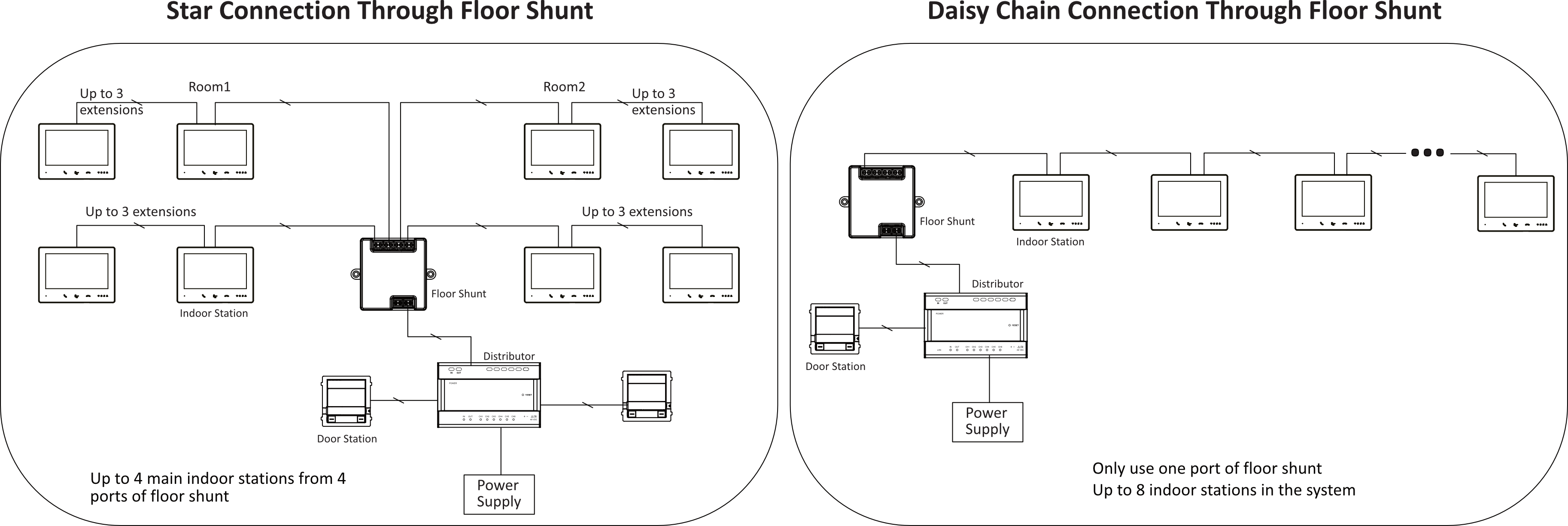

Single Floor Topology

Figure 2 Single Floor Topology

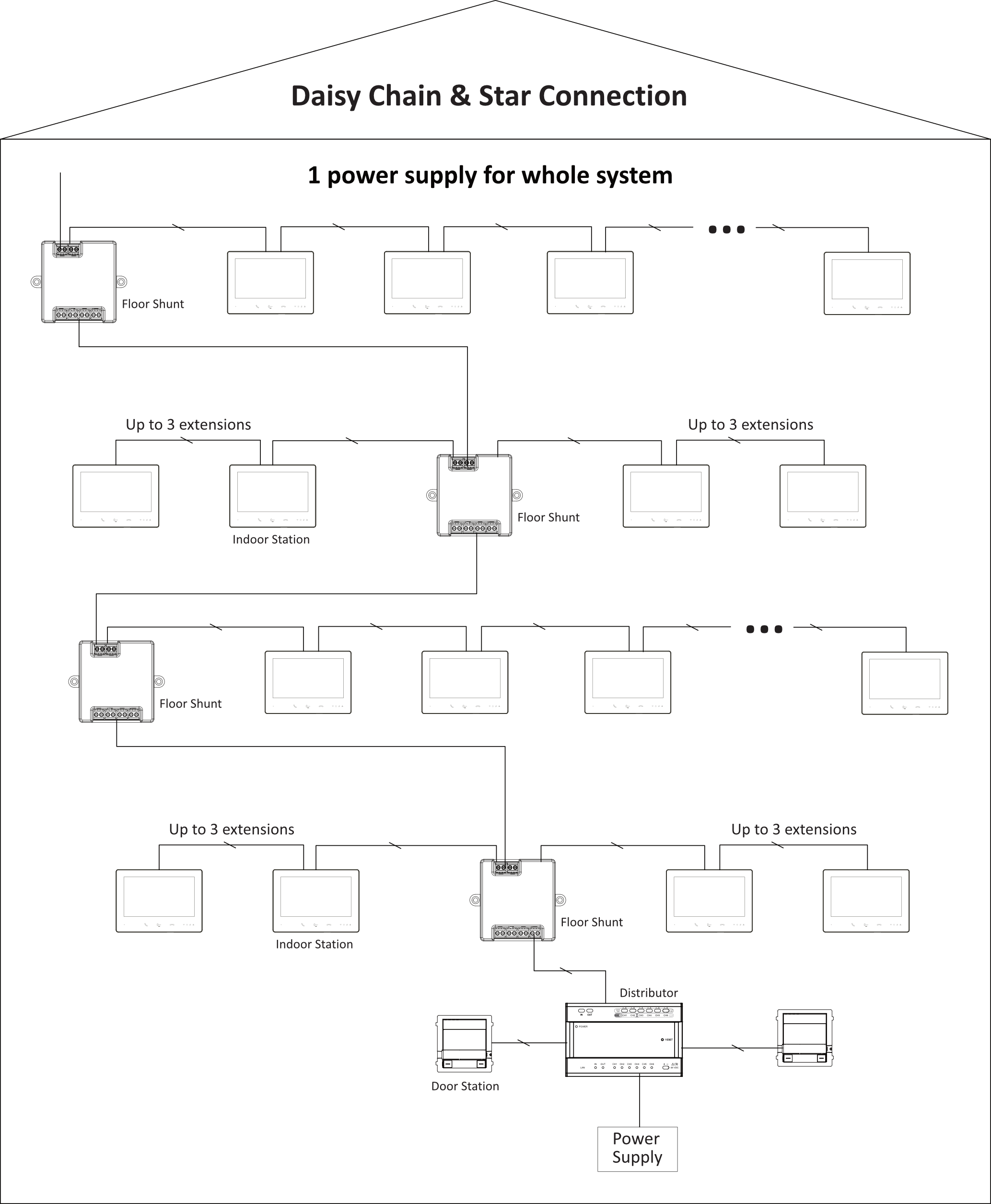

Single Building Topology

Figure 3 Single Building Topology
Note:
- Up to 22 indoor stations with Wi-Fi or 64 without Wi-Fi can be used in one building. (The cable needs to be better than AWG20)
- Up to 16 floor shunts can be cascaded.

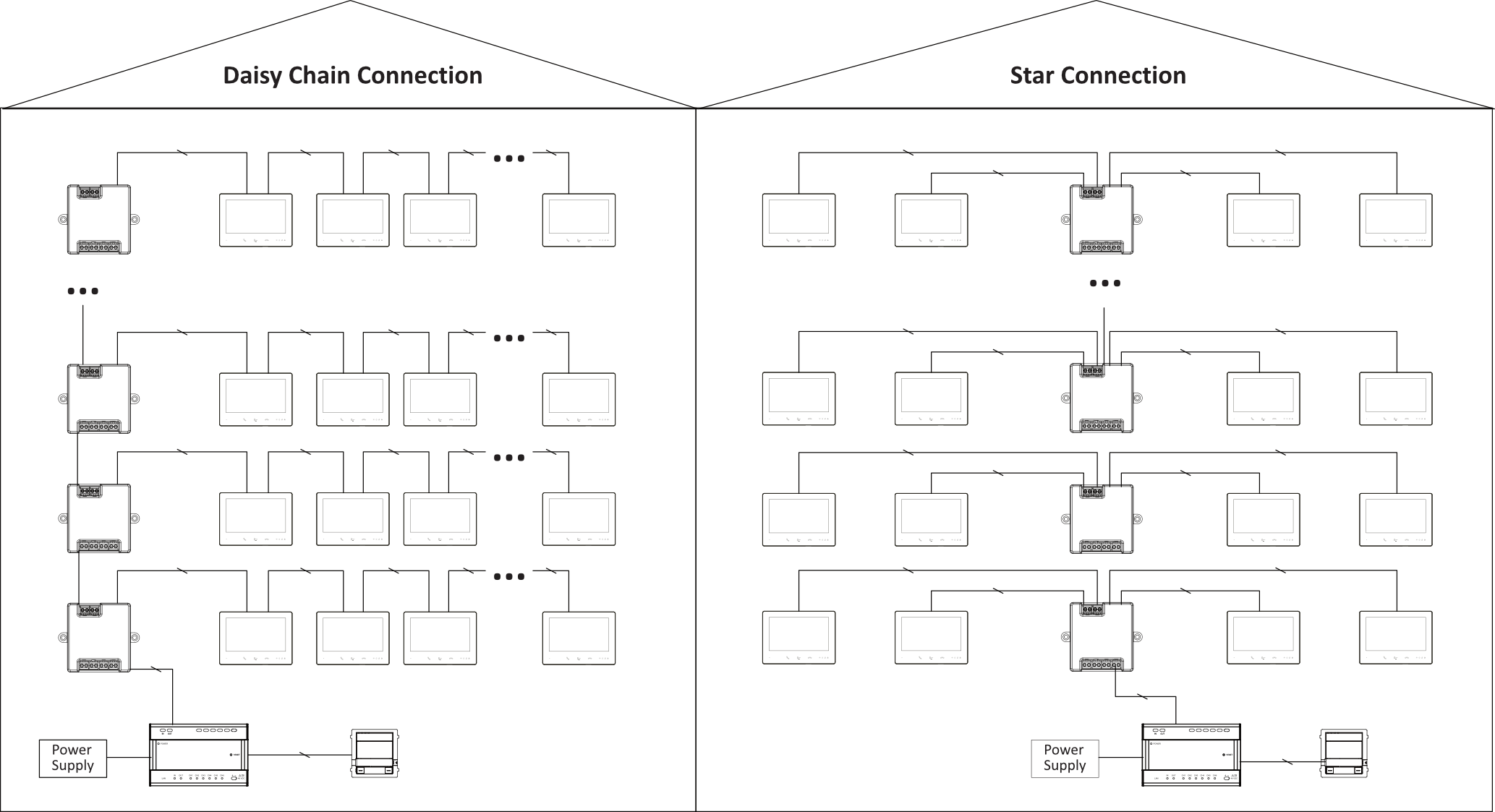

Single Building (Combined)

Figure 4 Single Building (Combined)

Note:
Due to system power consumption limitations, device needs to be powered separately after 64 or 22 indoor stations are exceeded.

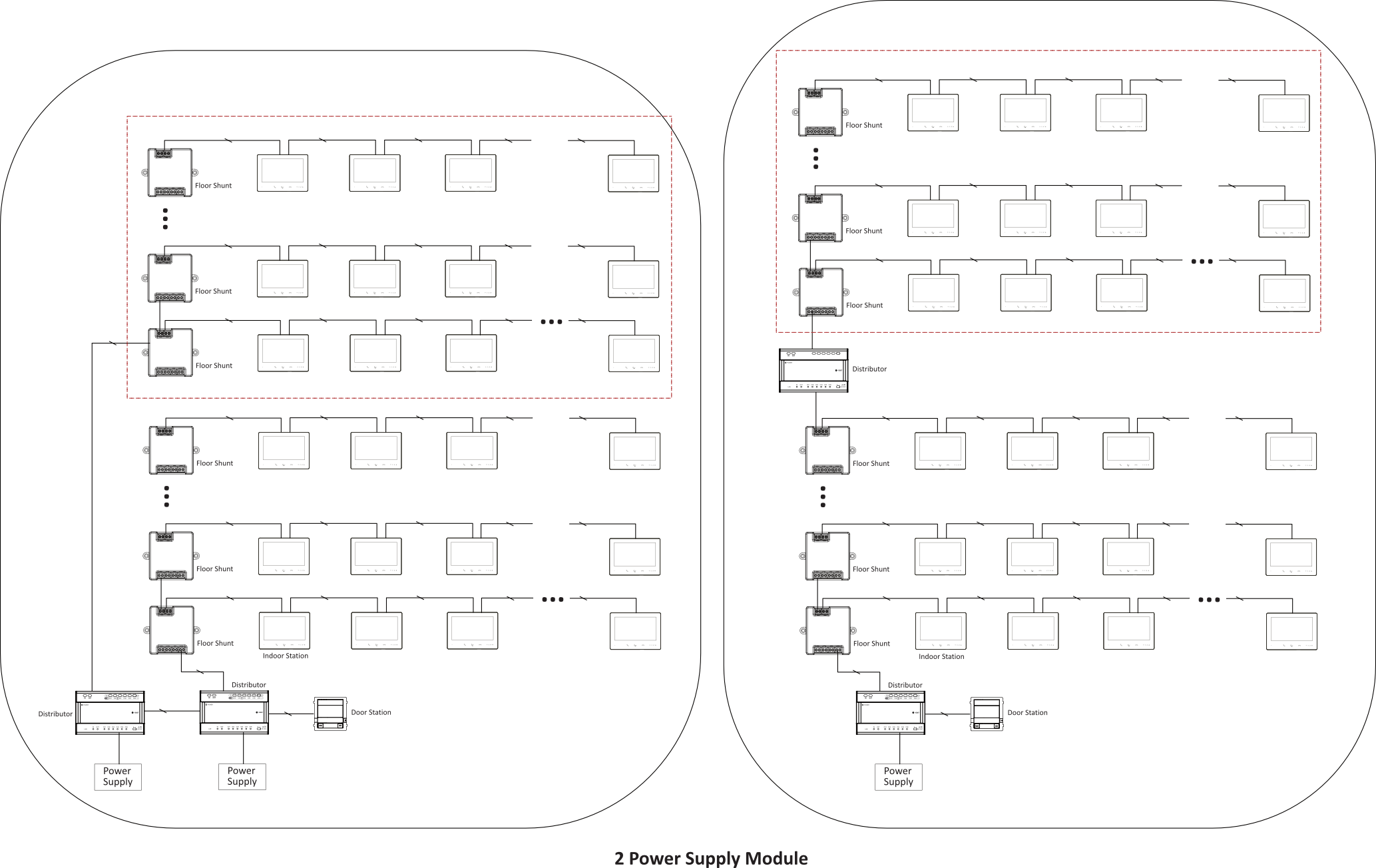

System Extension in one building

Figure 5 System Extension in one building

Note:
Up to 99 indoor stations without Wi-Fi, 44 with Wi-Fi.

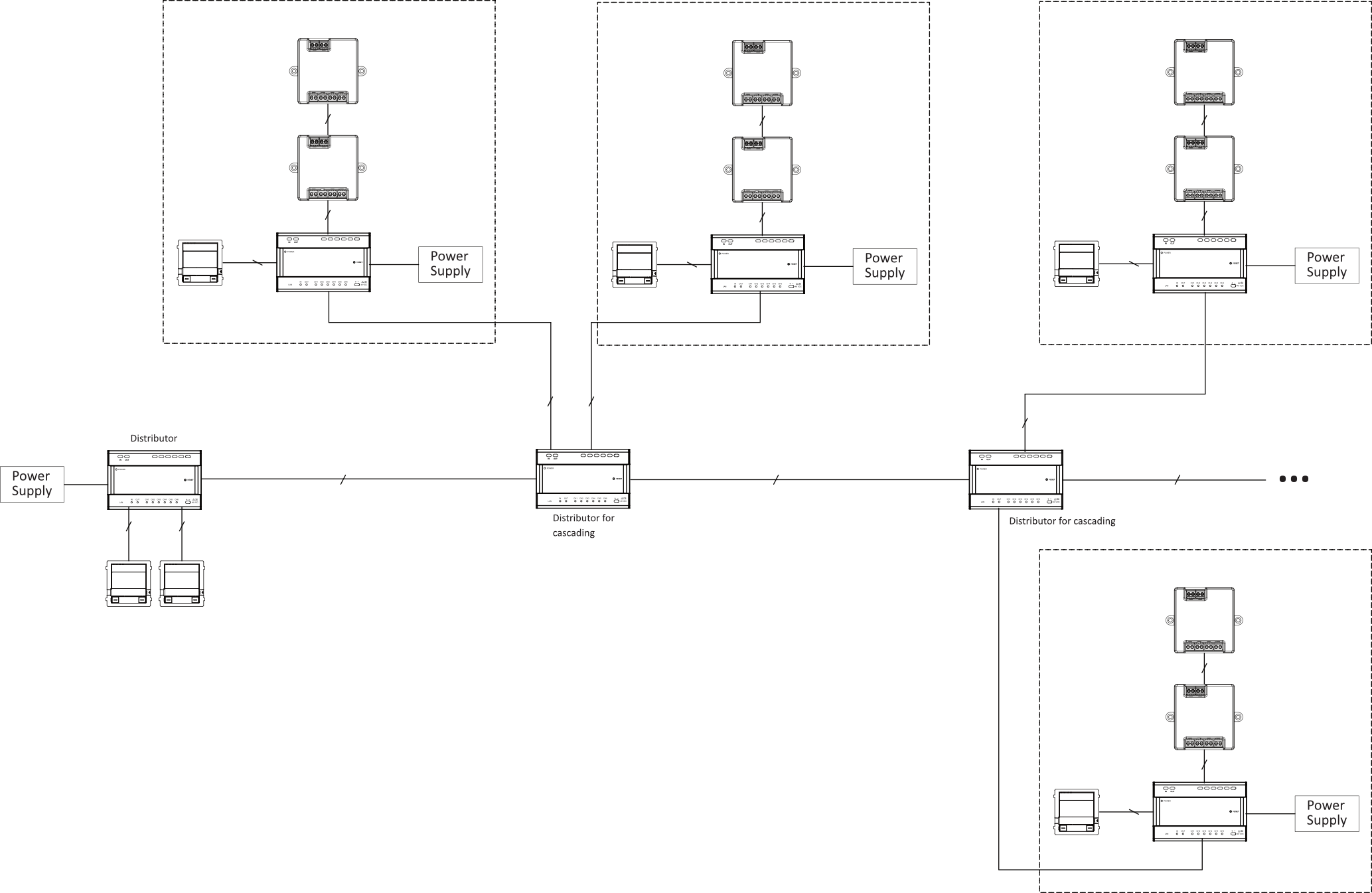

Multiple Building Topology

Figure 6 Multiple Building Topology
Note:
- Up to 16 buildings can be connected in the system via the distributor for cascading.
- Up to 10 outer door stations can be connected.
- Up to 16 sub door stations can be connected.
