Add Card Visitor Pass Template

The platform offers two default card templates (horizontal and vertical). If the default templates do not meet your needs, you can add a card template to customize the style.

  1. On the top left of the Web Client, select > Passing Management > Visitor > Basic Configuration > Visitor Pass Template > Card Template.
  2. Click to enter the Create Card Template page.

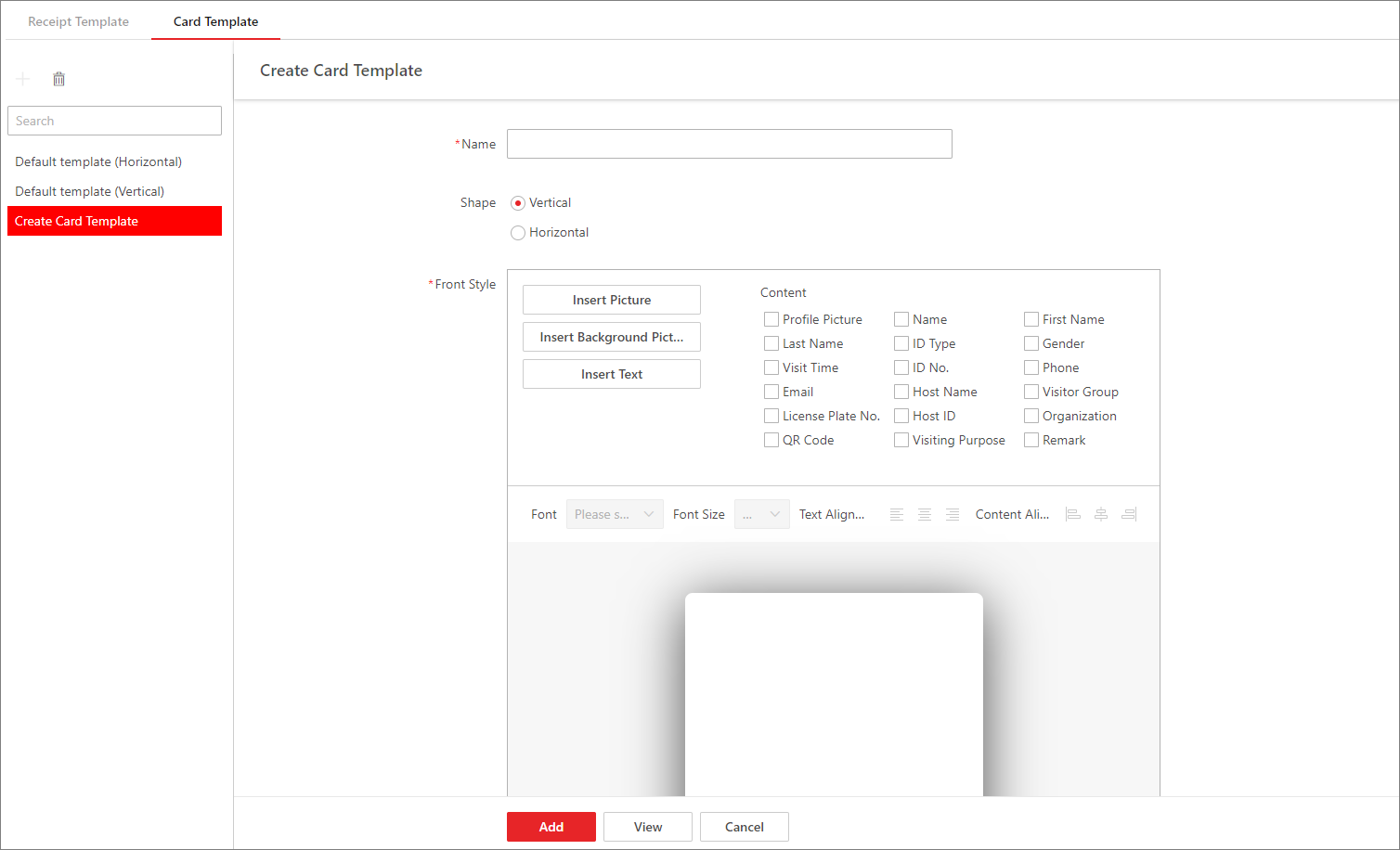

    Figure 1 Create Card Template Page
  3. Create a name for the card template.
  4. Set the shape of the card template to Vertical or Horizontal.
  5. Perform one or more of the following operations to add elements to the template in the Front Style section.
    Option Description

    Insert Background Picture

    Click Insert Background Picture to select a picture from the local PC and set it as the background of the template.

    Set Content

    Check the check-box(es) to add the content element(s). Or click Custom Information and then select element(s) in the pop-up window to add them.

    Note:

    Make sure you have set custom visitor attributes; otherwise, Custom Information will be unavailable. For details about setting custom visitor attributes, see Set Basic Parameters.

    Insert Picture

    Click Insert Picture to select a picture from the local PC and add it to the template.

    Insert Text

    Click Insert Text to add a text box to the template.

    You can set the font, font size, and text alignment for the entered text.
  6. Adjust positions of the added elements.
    Option Description

    Manually Adjust Position

    Drag an element to adjust its position.

    Align Elements

    Drag to select elements and then click , , or .

    Adjust Position via Right-Click Menu

    Right click an element and then click Stick on Top, Stick at Bottom, Move Up, or Move Down.
  7. Optional: Right click an element and then click Delete in the right-click menu.
  8. Optional: Set the back style.
    Note:

    The operations are the same as that of the front style. You can refer to steps 5 to 7 when you set the back style.

  9. Optional: Click View to preview the template.
  10. Click Add to add the template.

    The added template will be displayed in the template list on the left.

  11. Optional: Perform the following operations.
    Option Description

    Edit a Template

    Select a template from the template list to edit it.

    Delete a Template

    Select a template from the template list and then click .
