PIR Alarm

A PIR (Passive Infrared) alarm is triggered when an intruder moves within the detector vision field. The heat energy dissipated by a person or any other warm blooded creature such as dogs, cats, etc., can be detected.

1. Go to Smart Analysis > Smart Event Settings > Other Events.
2. Select a camera.
3. Click PIR Alarm.

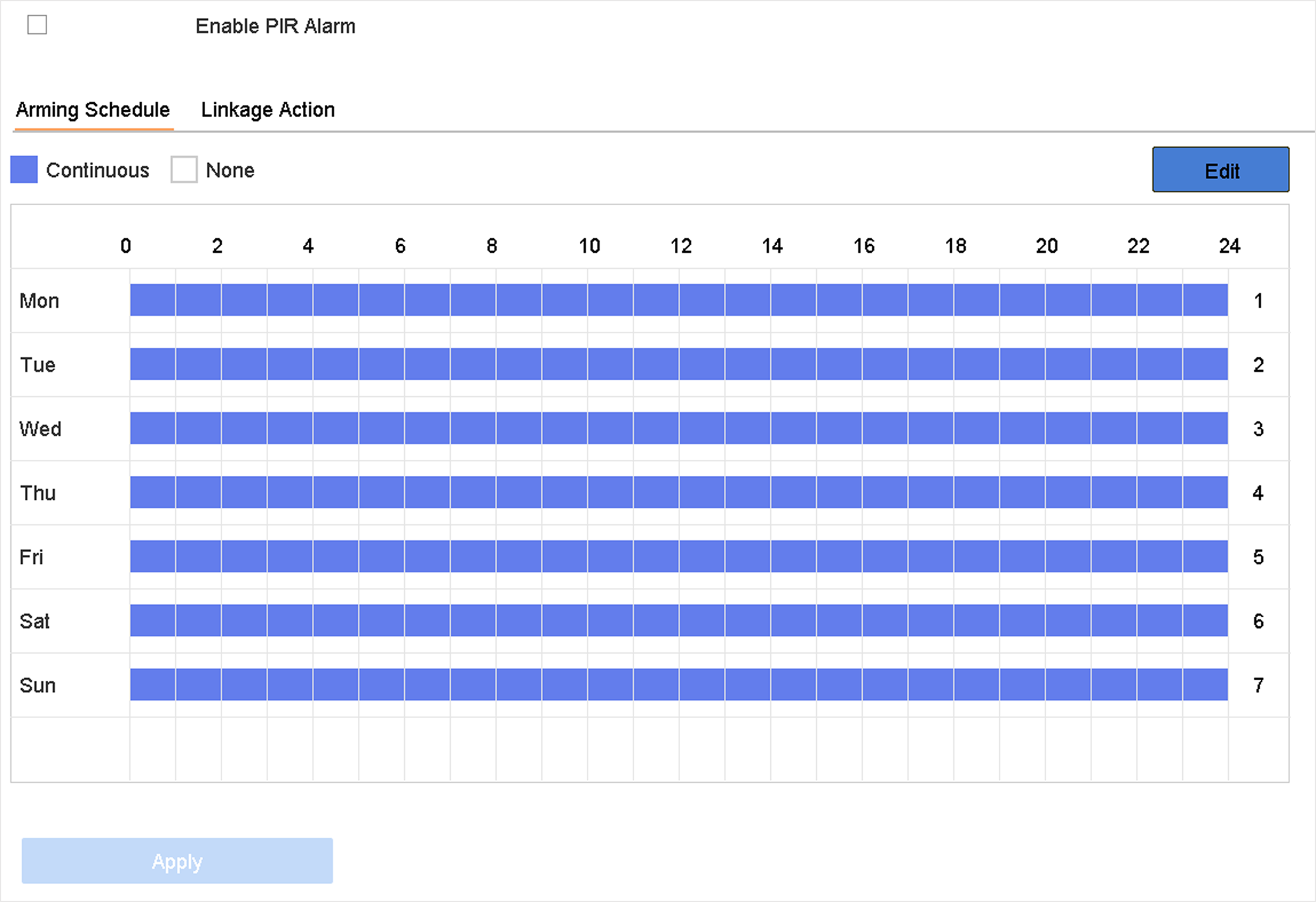

   Figure 1 PIR Alarm
4. Check PIR Alarm.
5. Optional: Check Save VCA Picture to save the captured of PIR alarm pictures.
6. Set the arming schedule. Refer to Configure Arming Schedule.
7. Set the linkage actions. Refer to Configure Linkage Actions.
8. Click Apply.
