Add Terminal by Device Serial No.

For the terminal (referred to as device in the following pages) supports ISUP protocol, you can add it to the platform by entering the device serial No., the authentication code, etc.

1. On the top navigation bar, select > Basic Management > Device to enter the device management page.
2. On the top, select Device.
3. On the left navigation pane, click Device and Server > Digital Signage Terminal.
4. Click Add to enter the Add Device page.

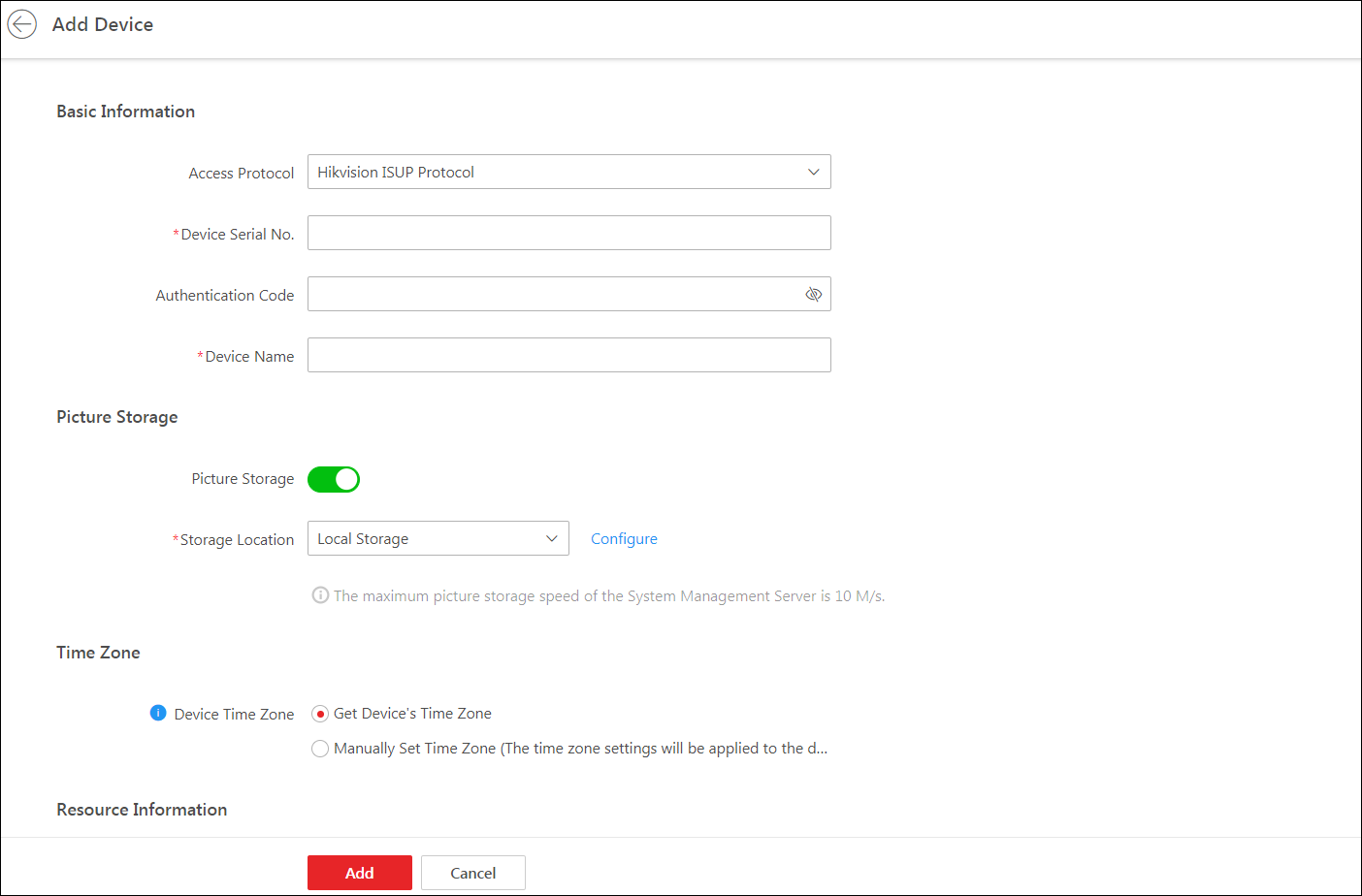

   Figure 1 Add Terminal by Device Serial No.
5. Select Hikvision ISUP Protocol as the access protocol.
6. Set the basic information.

   Device Serial No.

   Enter the device serial No.

   Authentication Code

   Enter the authentication code of the device.

   Note:

   The authentication code should contain 8 to 16 characters, including at least two of the following categories: upper case letters, lower case letters, and numbers.

   Device Name

   Name for the device, which can be used to describe the device function and location.

7. Optional: Enable Picture Storage to configure the storage location.

   Local Storage

   The pictures are stored in the SYS server.

   Note:

   You can click Configure to configure the storage location for pictures and files respectively. For details, refer to Configure Storage for Imported Pictures and Files.

   pStor

   The pictures are stored in the pStor server.

   Note:

   In the attendance application scene, you should enable Picture Storage.

8. Optional: Set the time zone of the device.

   • Select Get Device's Time Zone to get the time zone of the device.

   • Select Manually Set Time Zone to manually set the time zone of the device and the settings will be applied to the device automatically.

9. Optional: Switch on Add Resource to Area to import the resources of the added devices to an area.
   Note:

   You can create a new area by the device name or select an existing area. Also, you can click Add to add new area(s). For details, refer to Add an Area for Current Site.

10. Click Add.
11. Optional: Perform the following operations.

    Option	Description
    Change Password	Select one or more devices, and click Change Password to change the password of the selected devices. Note: If multiple devices have the same password, you can change the password for multiple devices simultaneously.
    Delete Device	Select one or more devices, and click Delete to delete the selected devices. Note: If the device which has been linked to the video wall is deleted, the corresponding video wall program cannot be released.
    Search Device(s)	Enter a keyword in the search box on the upper right corner of the page to quickly search the target device(s).
    Configure Device Display Settings	Select one or more devices and click Display Settings to enter the Display Settings page. See Configure Device Display Settings for details.
    Configure Device Privacy Settings	Select one or more devices, and then click Privacy Settings to enter the Privacy Settings page. See Configure Device Privacy Settings.
    Set Time Zone	Select one or more devices, and click Time Zone to configure the time zones of the selected devices. You can select Get Device's Time Zone or Manually Set Time Zone according to your requirements.
