Search for Online/Offline Logs of Resource

You can search for the online/offline logs of cameras on the current site. The online/offline logs provide information on the current device's status (online or offline), latest offline time, total offline duration, etc.

  1. On the top, select > Basic Management > Maintenance > System Log.
  2. Select Resource Logs on the left.

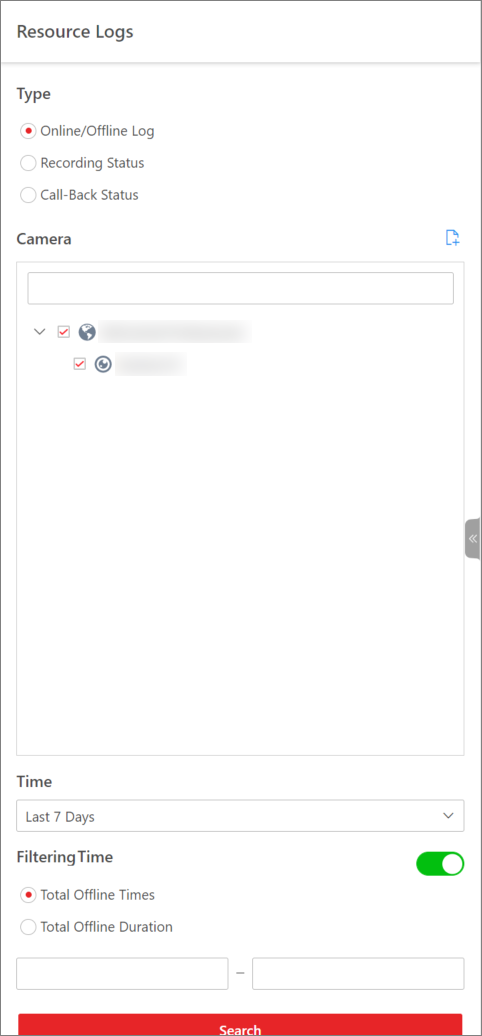

    Figure 1 Search for Resource Online/Offline Logs
  3. In Type, select Online/Offline Log.
  4. Click to show the area list on the current site and then select the cameras whose logs are to be searched for.
  5. Optional: Modify your selection in the selected camera list.
    Option Description

    Remove a Camera

    Click to remove the camera from the list.

    Remove All Cameras

    Click to remove all cameras in the list.
  6. In Time, specify the time range of this search.
    Note:

    You can select Custom Time Interval to set a precise start time and end time.

  7. Optional: If there are a large number of devices, switch on Filtering Time to set a range of total offline times during the specified time range to filter the devices, or set a total offline duration to filter the devices.
  8. Click Search.

    The offline/online log of each resource are listed on the right. You can view the name, IP address, current status (online/offline), latest offline time, total offline times, and total offline duration of each resource.

  9. Optional: Perform further operations after searching fro resource logs.
    Option Description

    View Offline History

    Click resource name to view history online duration (displayed as a line chart) and status (displayed as a list) of the resource.

    You can perform the following operations.

    • Filter Data: Select a time period and a status (online, offline or all) from the drop-down lists respectively to filter data.

    • View Details: Move the cursor to the line chart to view the detailed offline and online duration at each time point.

    View Device Online/Offline Logs

    Click the IP address to view the online/offline logs of the device where the resource is linked.

    Export Logs

    Click Export, and then select a file format and a report type to download the searched logs as a single file to your local PC.
