In the Health Monitoring module, you can view the real-time health status of the devices, servers, and resources managed on the platform. If there are network transmission devices managed on the platform, the Real-Time Overview page provides a topology of the managed devices. Topology is a figure that displays the connection relations among network transmission devices, security devices, etc. It is mainly used for network maintenance.
Make sure the network transmission devices have been added to the platform.
If a network transmission device can not be recognized by the platform, it will be displayed as an unknown device.
The topology does not support body cameras, but supports ticket dispensers.
On the top, select .
Select on the left.
Click Topology tab at the top to enter the Topology page.
Figure 1 Topology Overview|
Section |
Description |
|---|---|
|
Device Status |
View the abnormal data of different devices (e.g., encoding devices and decoding device) added on the Central System. You can click the number to locate the abnormal device in the topology or view the devices' real-time status. If the icon |
|
Resource Status |
View the abnormal data of different resources (e.g., cameras, doors, elevators, or alarm inputs) added to the areas of the Central System. You can click the number to view the real-time status details of resources or Remote Sites. Note:
The Remote Site status is only available for the Central System with the Remote Site Management module (based on the License you purchased). |
|
Topology Details |
View the relationships among devices, device information, link status, alarm information, etc. See details in Topology Details. |
|
Network Performance |
View the current network performance (i.e., poor or good) of the System Management Server. |
|
System Management Server Status |
View the network health status and server running status. Click

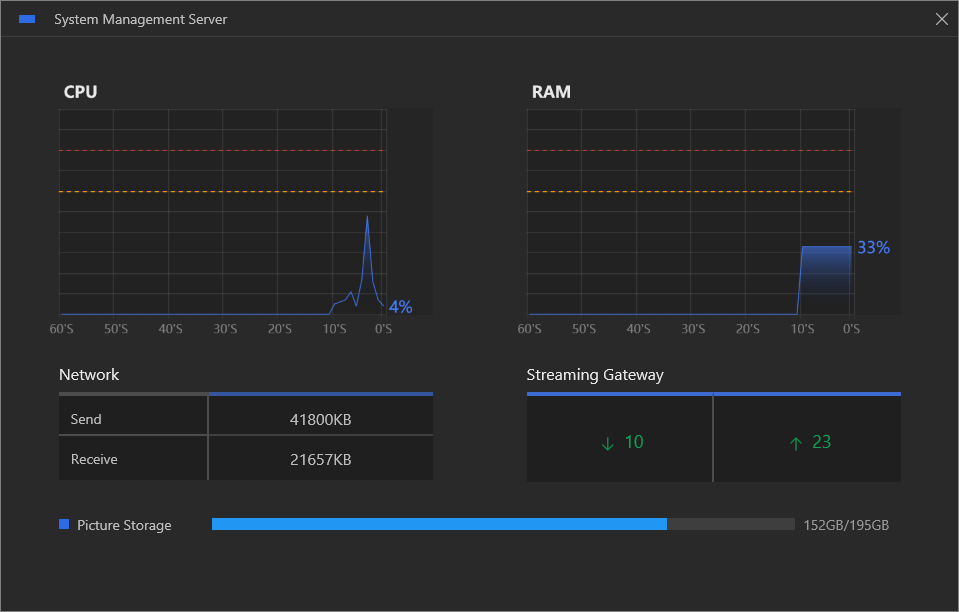

Figure 2 System Management Server
Status Details |
|
Server Status |
View the status (i.e., exception, warning, normal) of servers added on the Central System. |
|
Generate Topology Again |
Click to draw the network topology again. |
|
Refresh |
|
|
Export Topology or Exception Data |

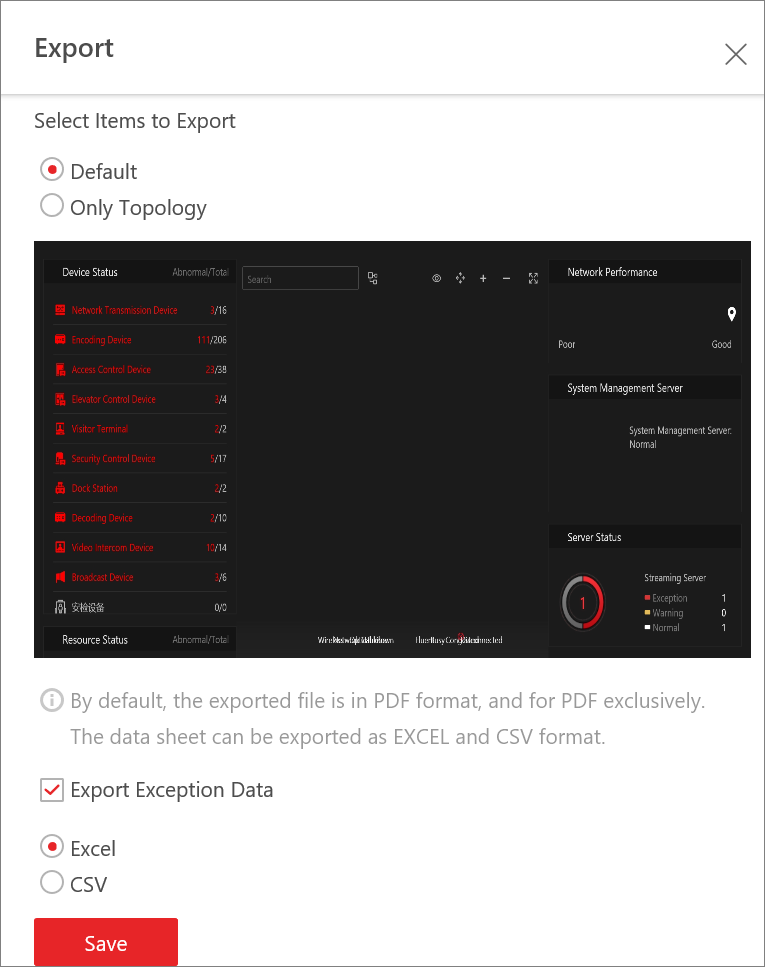

Click Export in the upper right corner of Topology page and select the export type as Default or Only Topology to export the topology in PDF format or the exception data in Excel/CSV format. Note:
Figure 3 Export Topology |
|
Display on Smart Wall |
Click |
