Add Vehicle to Area for Current Site

You can add vehicles to areas for the current site for management. Only vehicles linked with on-board devices can be added to areas and one vehicle can only be added to one area.

The on-board devices need to be added to HikCentral Professional for area management. Refer to Manage On-Board Devices for details.

  1. In the top-left corner of the Home page, select > Basic Management > Device.
  2. Click Area on the left.
  3. In the left panel, select the current site from the drop-down site list to show its areas.
    Note:

    The icon indicates that the site is the current site.

  4. Optional: Select an area for adding vehicles to in the area list panel.
  5. Select the Vehicle tab.
  6. Click Add on the element page to enter the Add Vehicle page.

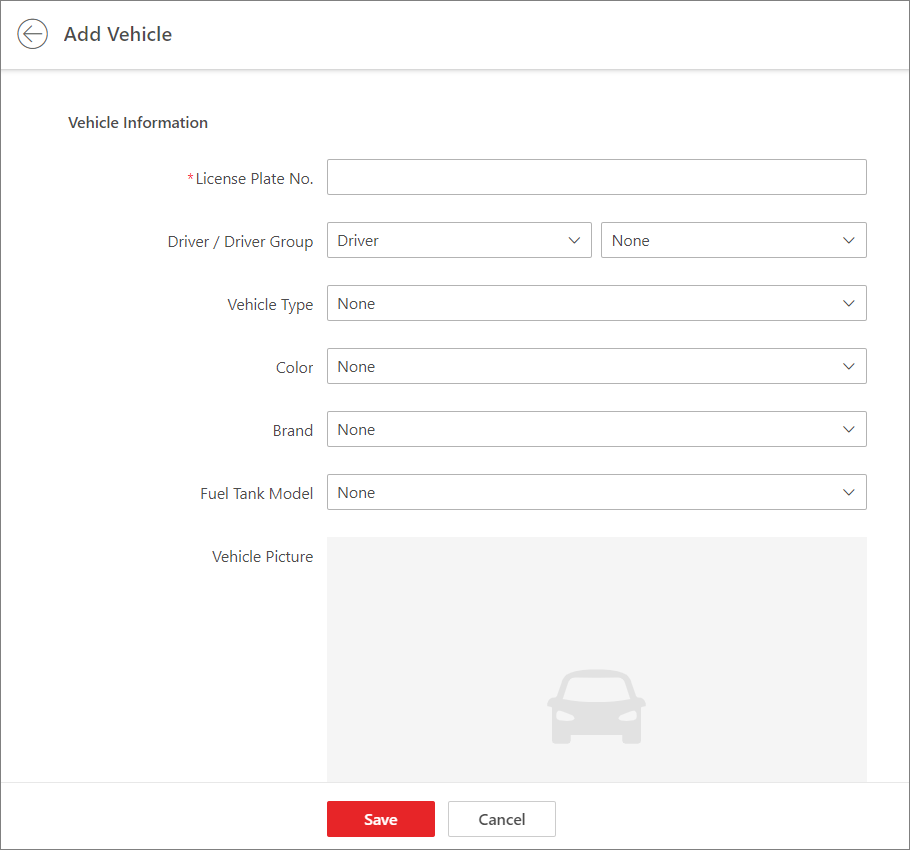

    Figure 1 Add Vehicle to Area
  7. Set the vehicle information, including the license plate No., driver / driver group, vehicle type, color, brand, fuel tank model, and vehicle picture.
  8. Select the on-board device linked with the vehicle from the Linkage Device drop-down list.
  9. Optional: Select the area.
    Note:

    • You can click Add in the Area field to add new areas.

    • If you have not selected area in previous step, selecting area in this step will be required.

  10. Click Save.

    The added vehicle will be displayed in the list.

  11. Optional: After adding the vehicle(s), you can do one or more of the followings:
    Option Description

    Delete Vehicle

    Select the vehicle(s) and click Delete.

    Set Speed Threshold

    Select the vehicle(s), click Speed Threshold Settings, and drag the slider or enter an integer in the text field.

    Move to Other Area

    Select the vehicle(s) and click Move to Other Area. Then select the target area to move the selected vehicle(s) to and click Move.

    Display Vehicles of Sub Areas

    Check Include Sub-Area to display the vehicles in sub areas.

    Remotely Configure Linkage Device

    Click in the Operation column of a vehicle to go to the remote configuration page of the on-board device.

    Note:

    This function is supported when the transfer protocol between the Web Client and the SYS server is HTTPS.

    Search for Vehicles

    Enter the keywords in the Search field to search for vehicles.
