Flap Barrier

The flap barrier controls the lane by extending or reducing the barrier. The lane width of flap barrier is fixed. Flap barrier is suitable for some high-end places, such as office building, museum and theater, etc.

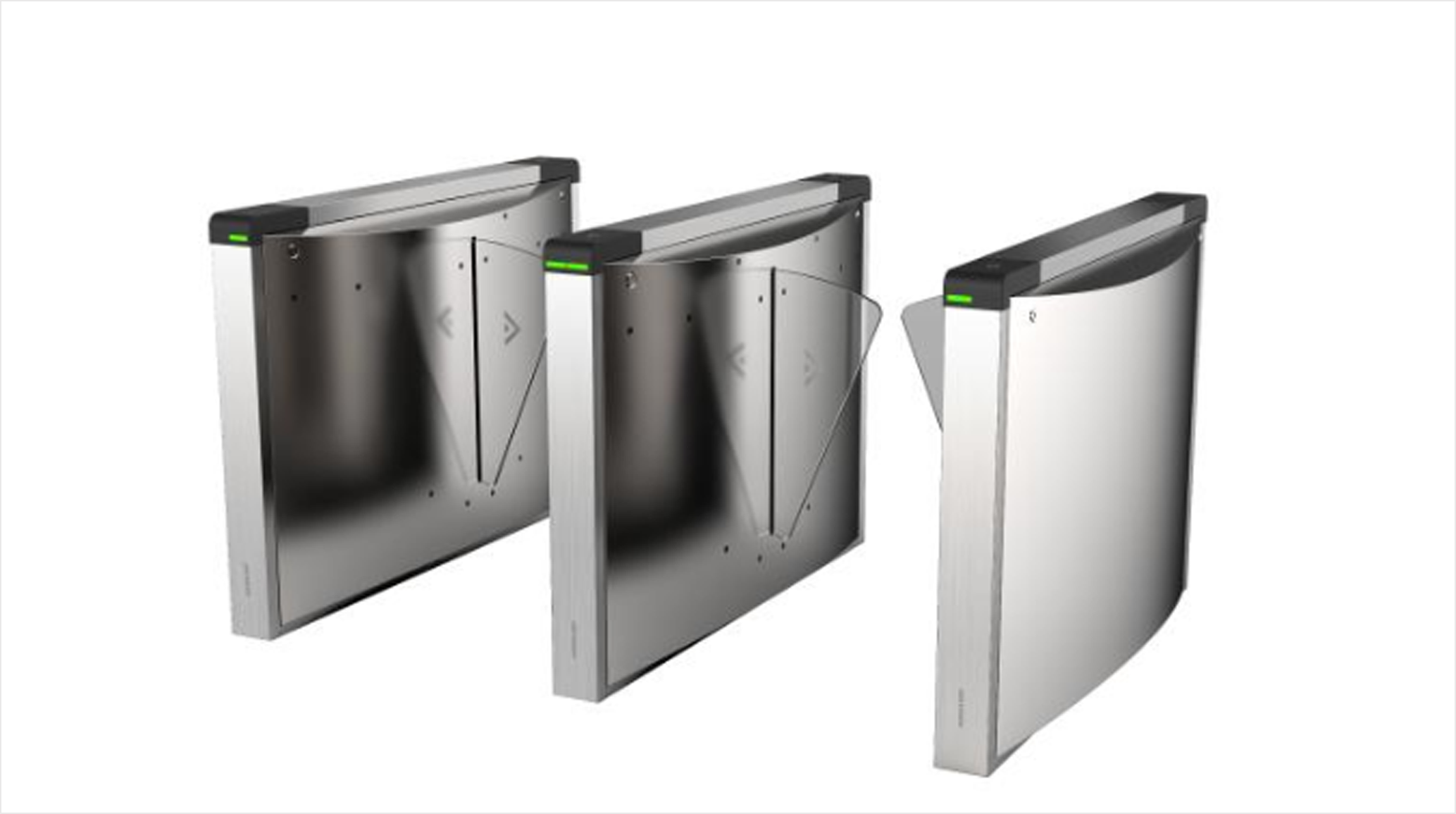

Figure 1. Flap Barrier Appearance
Table 1. Parameters of Flap Barrier

Parameter

Description

Barrier Material

Acrylic Glass

Lane Width (mm)

600

Pedestal Width (mm)

300

Pedestal Length (mm)

1410

Wall Distance (mm) 130

Available Model

DS-K3Y501 series (L1, L2, M1, M2, R)

Note:
  • The same flap barrier series supports 5 models: L1, L2, M1, M2, R.

  • L1 indicates left pedestal 1. L2 indicates left pedestal 2. M1 indicates middle pedestal 1. M2 indicates middle pedestal 2. R indicates right pedestal.

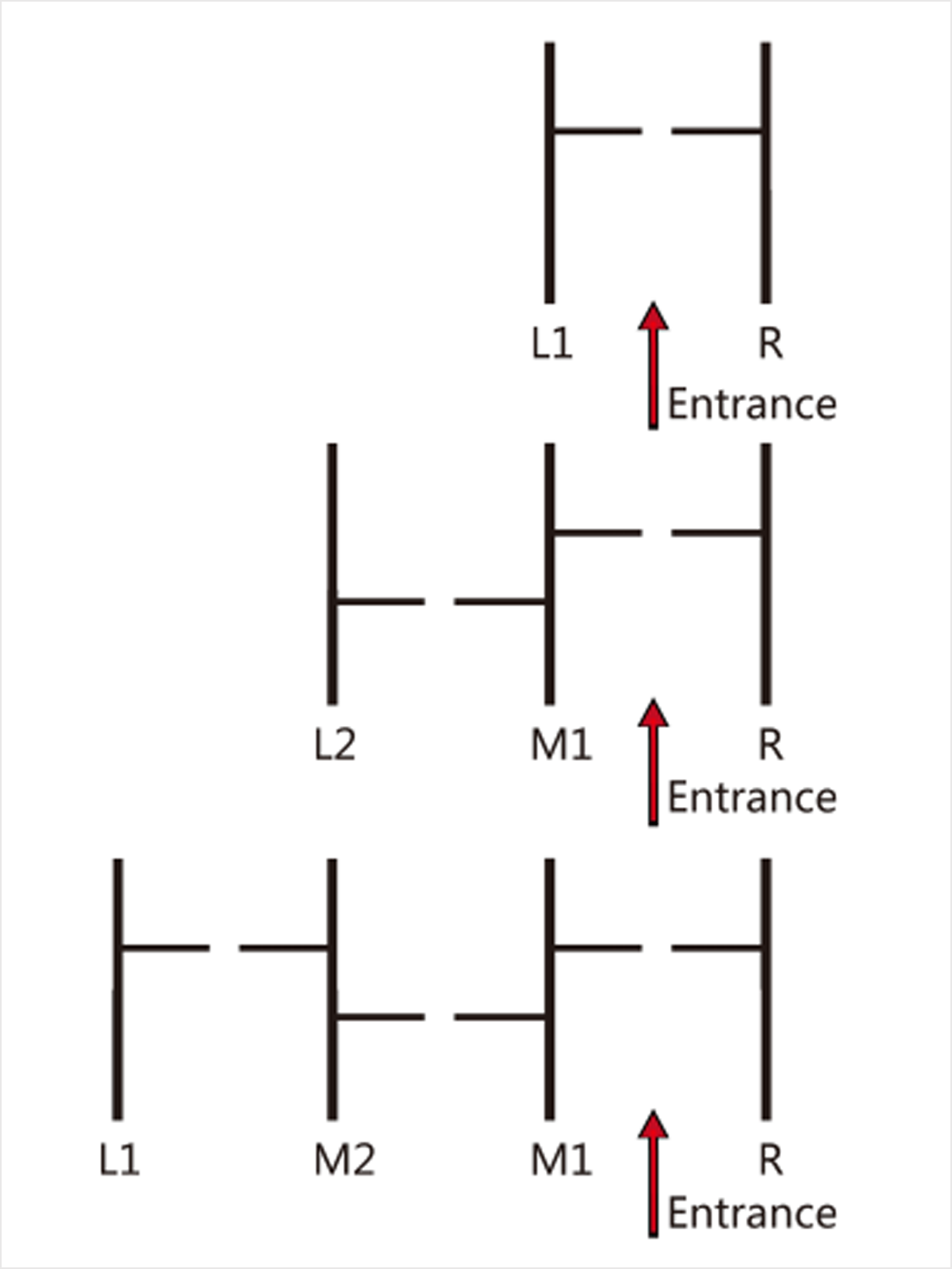

Figure 2. Flap Barrier Installation
