Tripod Turnstile

Tripod Turnstile

The tripod turnstile controls the lane by rotating the axis, thus permitting one person to pass at one time and control the flow of people in one direction. Tripod turnstile is suitable for the scene that requires preventing tailgating and ticket evading, such as park, scenic area, and factory, etc.

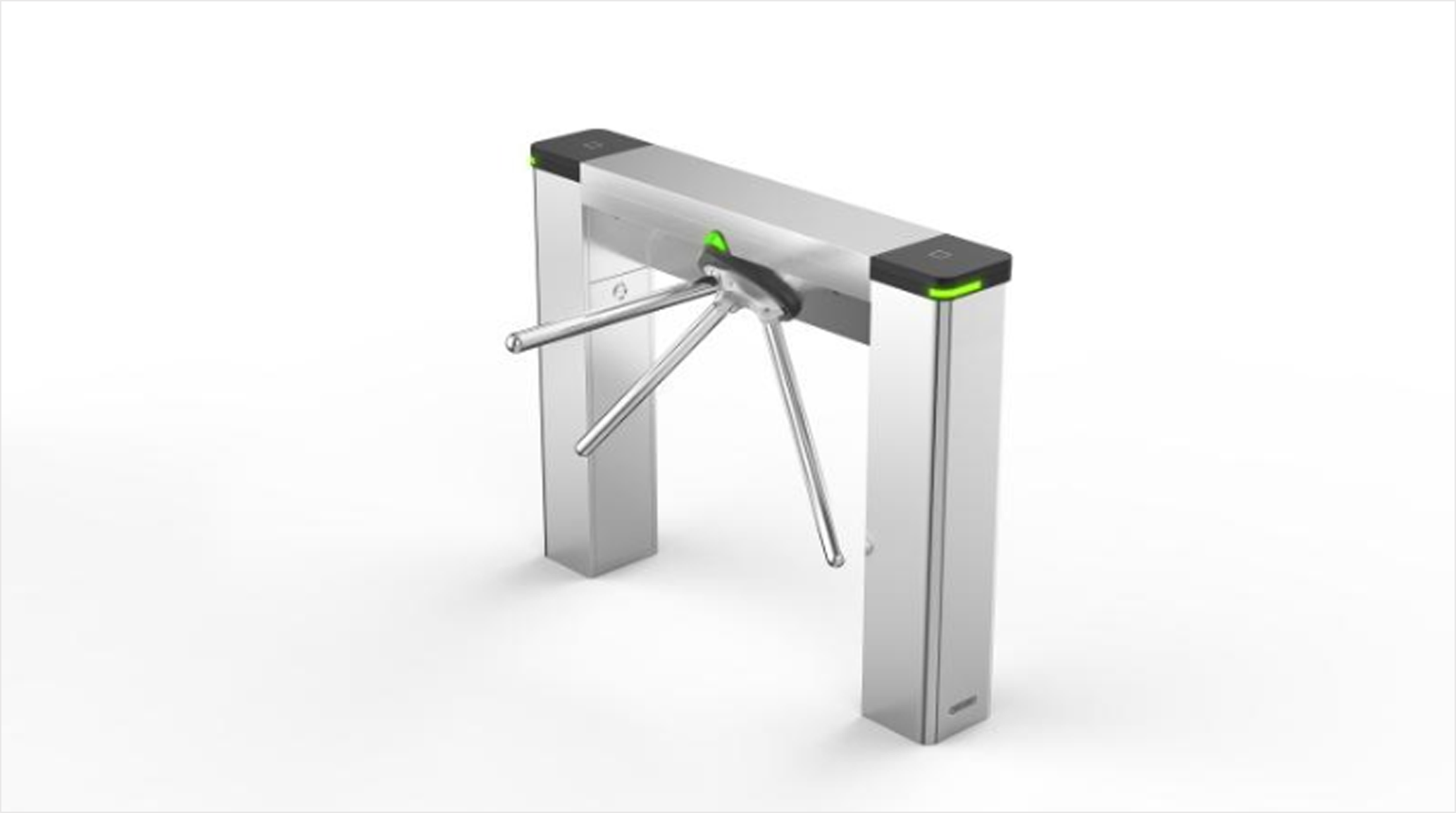

Figure 1. Tripod Turnstile Appearance
Table 1. Parameters of Tripod Turnstile

Parameter

Description

Lane Width (mm)

550

Pedestal Width (mm)

230

Pedestal Length (mm)

1210

Available Model

DS-K3G501 series

Note:

If necessary, the tripod turnstile can be flipped by 180°, to be used as left turnstile or right turnstile.

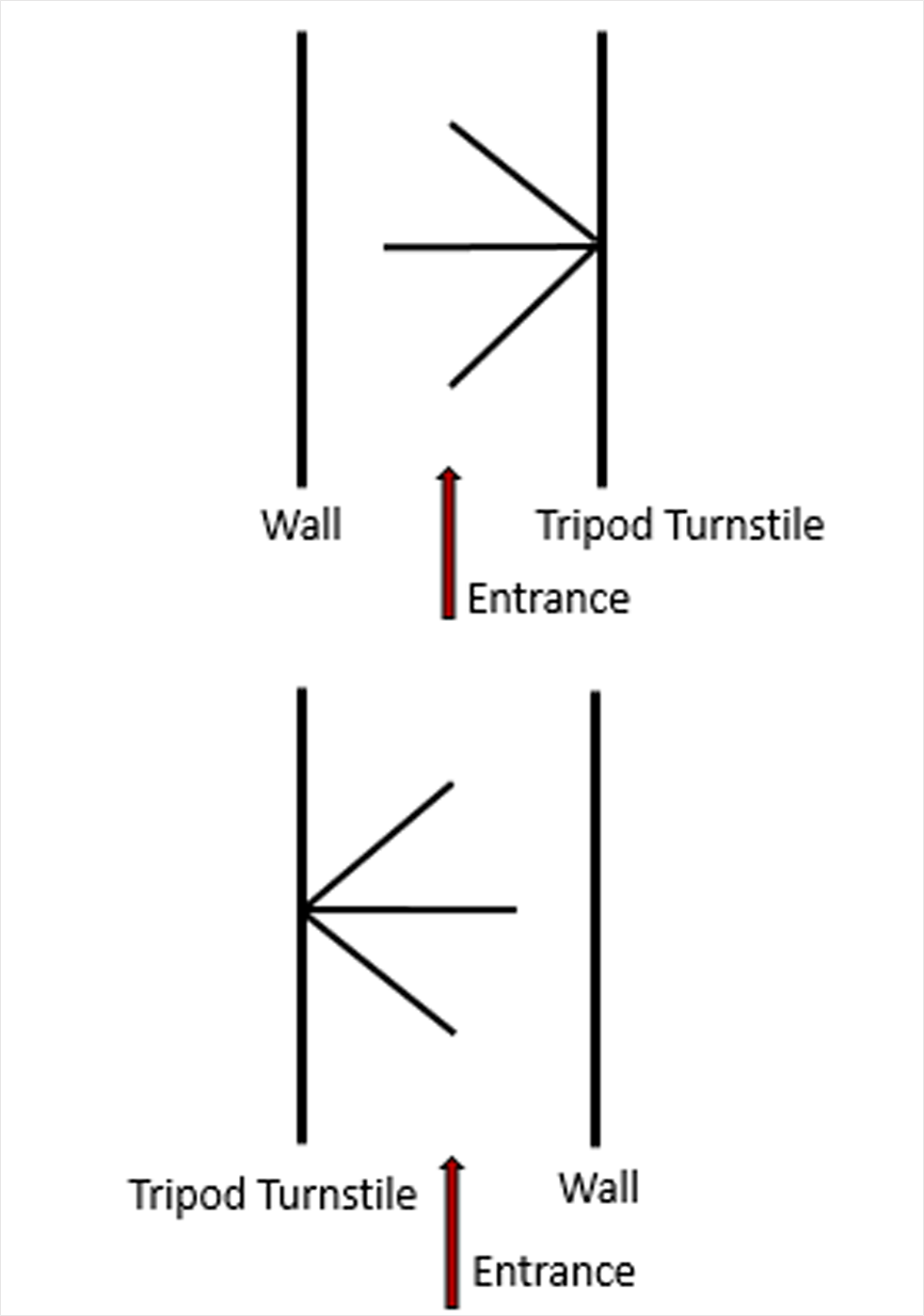

Figure 2. Tripod Turnstile Installation
