Swing Barrier

Swing Barrier

The swing barrier controls the door open/close to control the passenger flow. The lane width of swing barrier can be adjusted to meet the actual scene requirement. With the flexible lane width and high barrier open/close speed, swing barrier is suitable for the scene that requires wide lane and large flow of people, such as subway, school, station, and community, etc.

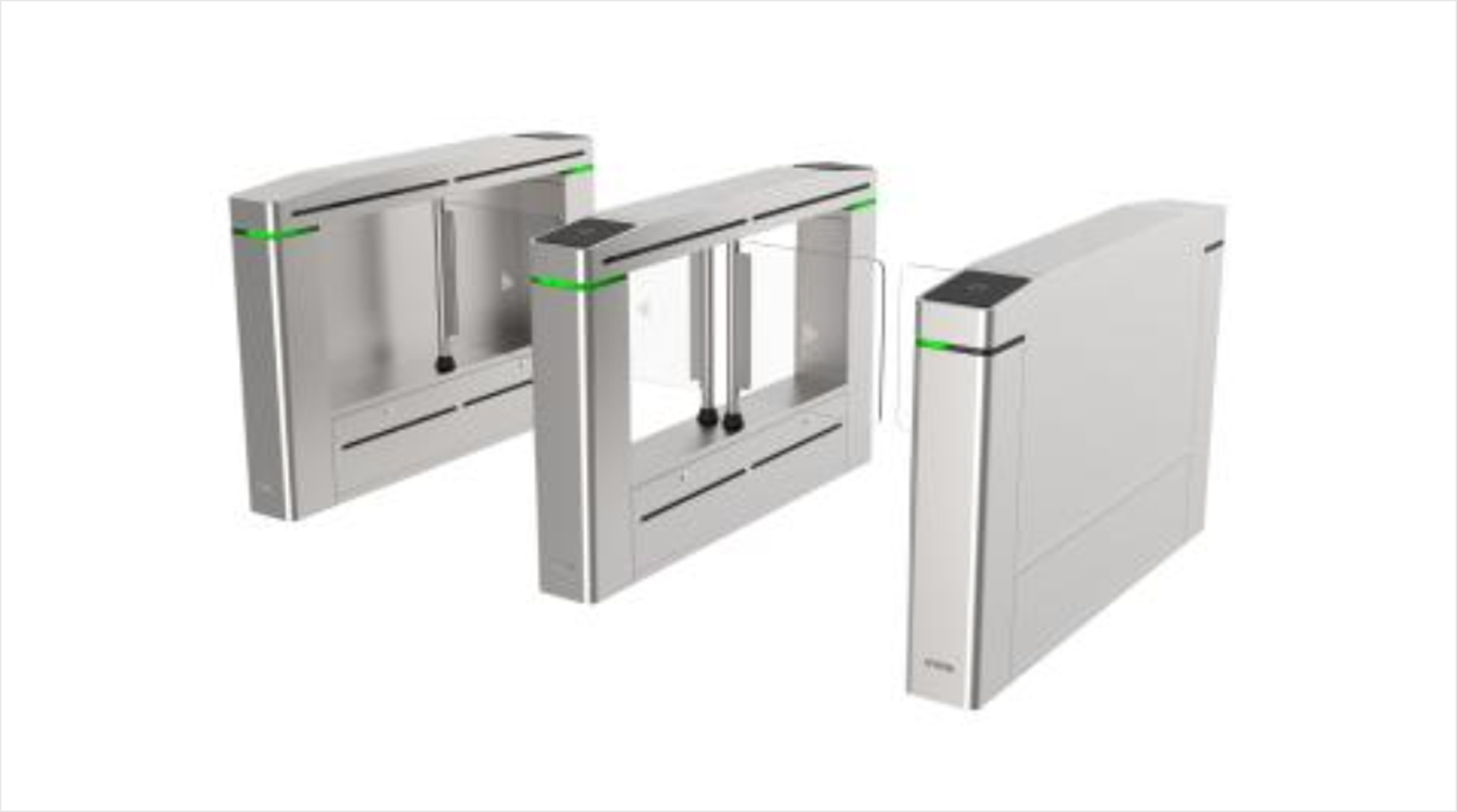

Figure 1. Swing Barrier Appearance
Table 1. Parameters of Swing Barrier

Parameter

Description

Barrier Material

Acrylic Glass or Stainless Steel Pipe

Lane Width (mm)

600, 650, 750, 900 or 1100

Pedestal Width (mm)

175 or 200

Pedestal Length (mm)

1500

Available Model

DS-K3B601 series (L, M, R)

DS-K3B601A series (L, M, R)

DS-K3B801 (L, M, R)

DS-K3B801A (L, M, R)

Note:

  • The same swing barrier series supports 3 models: L, M, R.

  • L represents pedestal on the left. M represents pedestal in the middle. R represents pedestal on the right.
Figure 2. Swing Barrier Installation
